Description & Specification

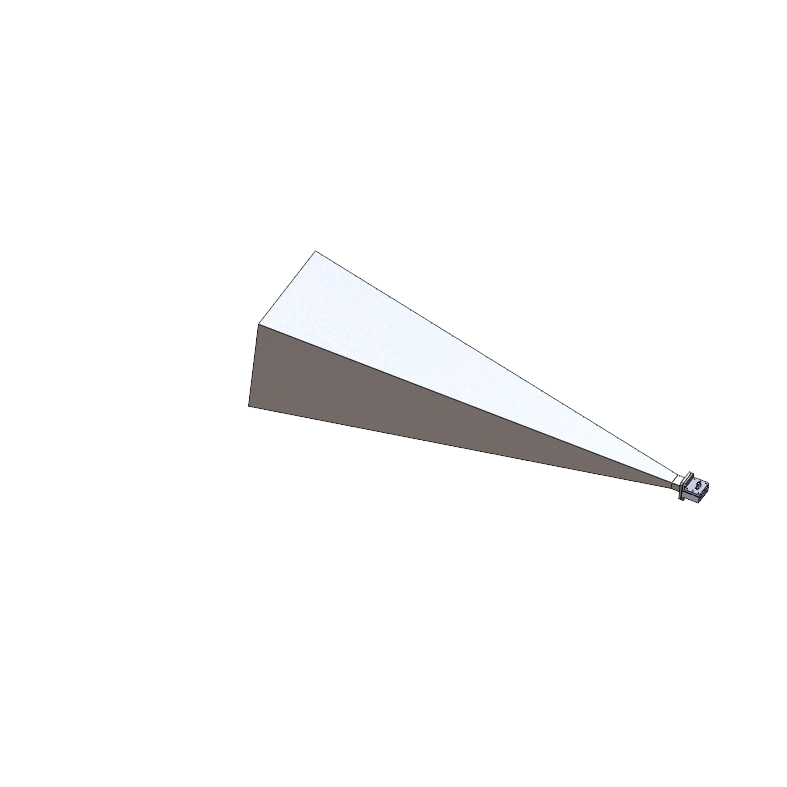

X-Band Standard Gain Horn
WR-90 Waveguide | 8.2 GHz – 12.4 GHz | 25 dBi
The HS-090-UDR-25A-SF is a high-precision X-band standard gain horn antenna professionally engineered for broad-spectrum microwave measurement applications. Operating across the full waveguide frequency range of 8.2 GHz to 12.4 GHz, it delivers a high nominal gain of 25 dBi with exceptional beam symmetry. Utilizing a precision WR-90 interface with UBR flange compatibility and a high-durability stainless steel SMA interface, this antenna is an essential instrument for Signal Integrity verification, antenna gain calibration, and professional laboratory setups requiring industrial-grade reliability.
Technical Specifications
Electrical RF Performance
| Model Number | HS-090-UDR-25A-SF |
| Frequency Range | 8.2 GHz - 12.4 GHz (X-Band) |
| Nominal Gain | 25 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | H-Plane: 10° | E-Plane: 9° |
| Maximum CW Power | 300 Watts |
Mechanical & Interface Data
| Connector Type | Stainless Steel SMA-Female (SUS) |
| Waveguide / Flange | WR-90 / UBR (UG39/U, UG40A/U Compatible) |

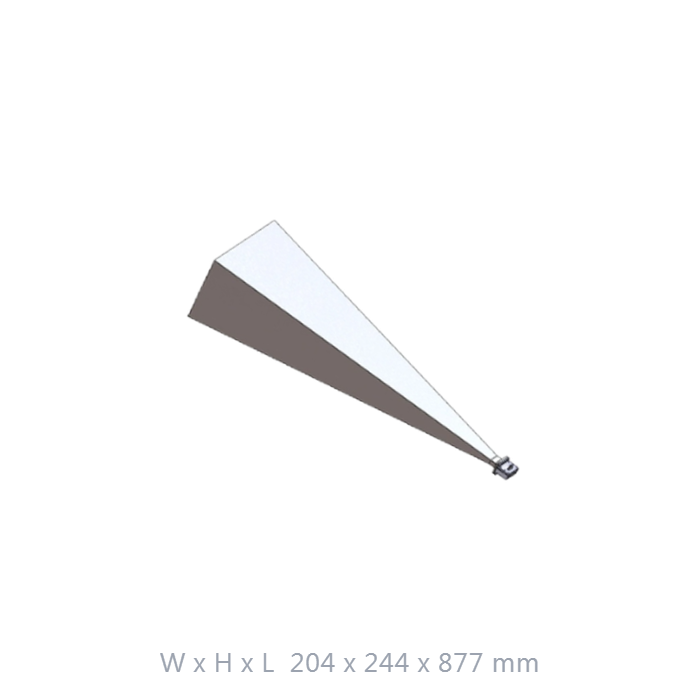

| Dimensions (W x H x L) | 204 x 244 x 877 mm |
| Weight | 2300 g (Industrial Aluminum Alloy) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
X-Band Waveguide Precision
Designed for the 8.2-12.4 GHz spectrum, ensuring low insertion loss and high mechanical alignment accuracy for Signal Integrity measurements in microwave setups.
High-Gain Narrow Beam
Features a specialized 25 dBi gain profile with optimized beam symmetry (10° H / 9° E), providing superior directional resolution for antenna calibration and field measurement.
Standardized Global Integration
Fully meets international X-band waveguide standards, featuring a precision aluminum body and stainless steel SMA interface for stable mating cycles in lab environments.
Custom Engineering Flexibility
Available for advanced modifications including PTZ control integration, tripod/antenna mounting designs, and customized color finishes to meet specific project requirements.
Inquire About X-Band Solutions
Contact our engineering team for specialized gain calibration data, custom color requirements, or technical support regarding high-gain microwave setups.
