HS-090-UBR-10H-NF H-Plane Sectoral Horn Antenna
8.2 - 12.4 GHz | 10 dBi Gain | Wide-Angle E-Plane Coverage

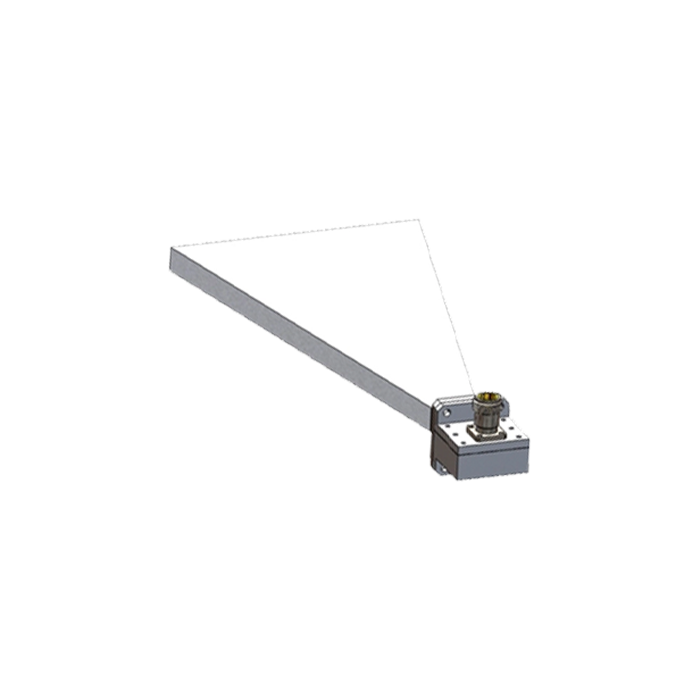

The HS-090-UBR-10H-NF is a high-precision Sectoral Horn Antenna expertly flared in the H-plane to deliver a wide E-plane coverage of 106°. Operating within the 8.2 GHz to 12.4 GHz X-Band spectrum, this antenna system integrates a precision waveguide-to-coaxial adapter with a durable stainless steel N-Female interface. Precision-manufactured from high-grade aluminum, it ensures exceptional return loss (VSWR 1.25) and manages power loads up to 300W, making it an essential radiator for EMI/EMC testing, wide-angle field generation, and antenna gain measurement.
Electrical & RF Performance
| Frequency Range | 8.2 GHz - 12.4 GHz |
| Waveguide Interface | WR-90 (UG-39/U) |
| Nominal Gain | 10 dBi |
| Max Power Handling | 300 Watts (CW) |
| Beamwidth (H/E) | 16° / 106° |
Mechanical & Physical

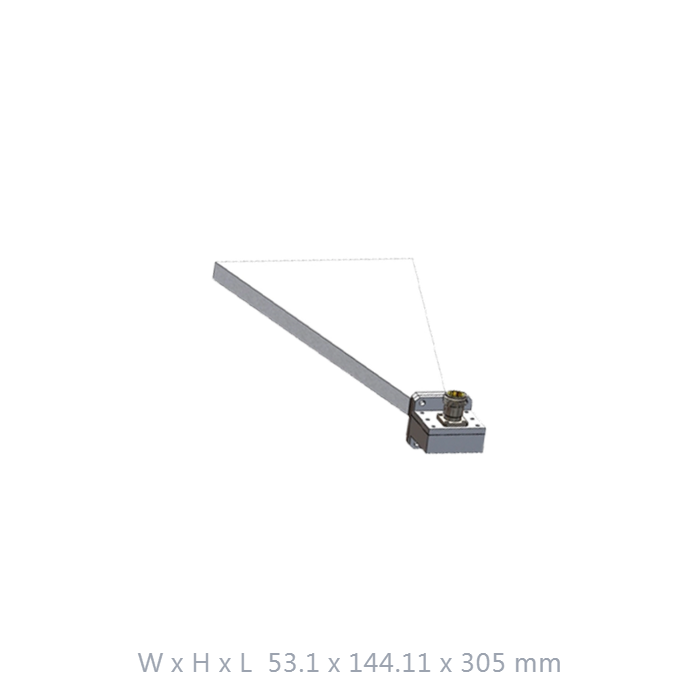

| Dimensions | 53.1 x 144.11 x 305 mm |
| Weight | 380 g |
| Connector Type | N-Female (Stainless Steel) |
| Body Material | High-Grade Aluminum |
Wide E-Plane Coverage
Specialized H-plane flare design yields an expansive 106° sectoral coverage in the E-plane, ideal for broad-area illumination in EMC susceptibility testing or multi-point surveillance.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel N-Type interface, ensuring reliable electrical contact and structural wear resistance for repeated laboratory use.
X-Band Pattern Stability
Optimized for the 8.2-12.4 GHz band, ensuring consistent boresight accuracy and minimal signal leakage in mission-critical environments.
Customizable Infrastructure
Available with options for PTZ control integration, specialized tripod mounting, and custom color coatings to meet specific environmental requirements.
Contact FT-RF Engineering Division
Contact our engineering team for specialized PTZ control, waterproof structures, or custom mounting interfaces.
