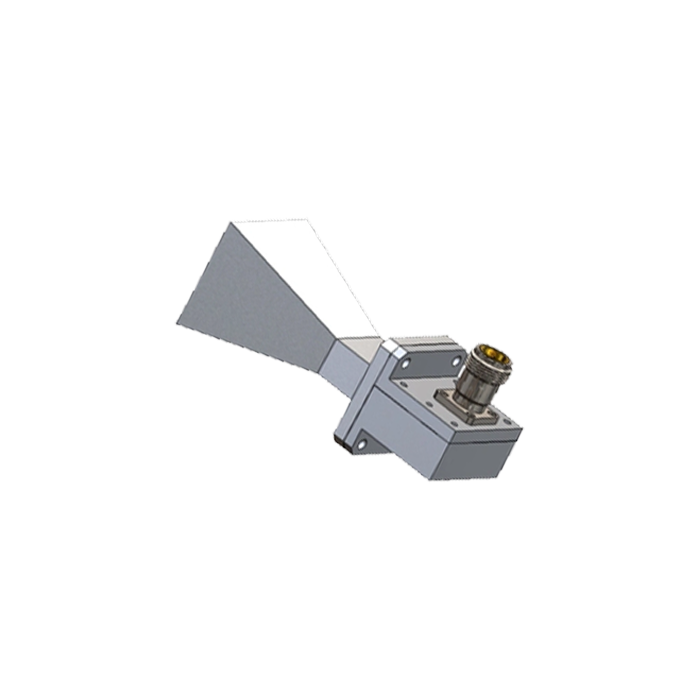

WR-90 Standard Gain Horn Antenna with N-Type Adapter
Model: HS-090-UBR-10A-NF | 8.2 - 12.4 GHz | 10 dBi | 300W
The HS-090-UBR-10A-NF is a high-precision Standard Gain Horn Antenna professionally integrated with a low-loss waveguide-to-coaxial adapter. Operating within the 8.2 GHz to 12.4 GHz X-Band spectrum, this antenna provides a consistent 10 dBi gain and exceptional VSWR (1.25). Precision-manufactured from high-grade aluminum with a durable Stainless Steel N-Female interface, it is an essential instrument for EMI/EMC Testing and antenna gain measurement, ensuring superior Signal Integrity for mission-critical RF deployments.
Technical Specifications
Electrical & RF Performance
| Waveguide Standard | WR-90 (R100) |
| Frequency Range | 8.2 GHz to 12.4 GHz |
| Standard Gain | 10 dBi |
| Maximum Power Handling | 300 Watts (CW) |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H / E Plane) | 56° / 54° |
Mechanical & Physical Specs

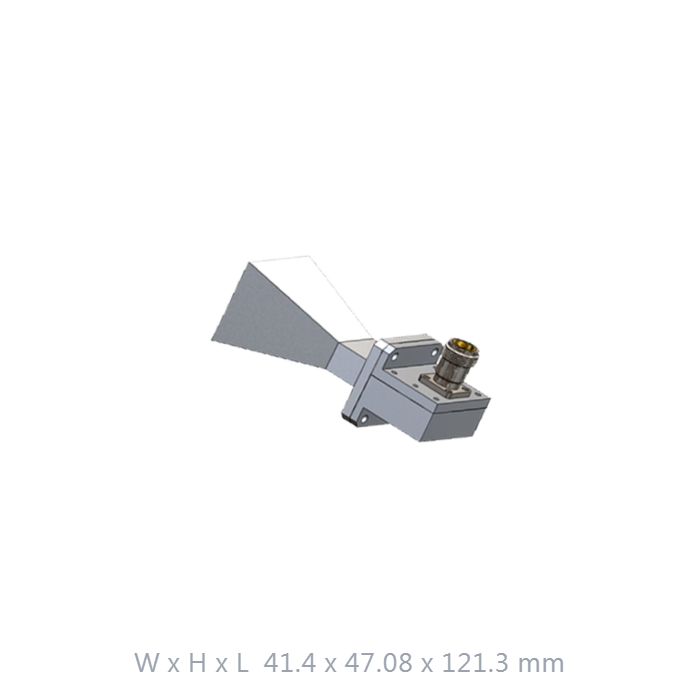

| Dimensions (WxHxL) | 41.4 x 47.08 x 121.3 mm |
| Net Weight | 160 g |
| Waveguide Flange | UG-39/U (UBR Style) |
| Coaxial Connector | N-Female (Stainless Steel / SUS) |
| Material | High-Grade Aluminium |
| Origin | Made in Taiwan (FT-RF) |
Key Tactical Features
X-Band Pattern Stability
Optimized for the 8.2-12.4 GHz band, delivering the boresight accuracy and gain consistency required for high-fidelity antenna calibration.
Heavy-Duty SUS Interface
Equipped with a high-durability stainless steel N-Type interface, ensuring reliable electrical contact and structural wear resistance for repeated lab use.
Ultra-Compact Radiator
Weighing only 160g, this compact horn antenna ensures minimal load on precision laboratory positioners while maintaining high structural rigidity.
Customizable Infrastructure
Available with options for PTZ control integration, specialized tripod mounting, and custom color coatings to meet specific mission requirements.
Get a Quote / Custom RF Solutions
Contact us for specialized PTZ control, waterproof structures, or custom mounting interfaces.
